KSD-95H Stone Splitting Machine

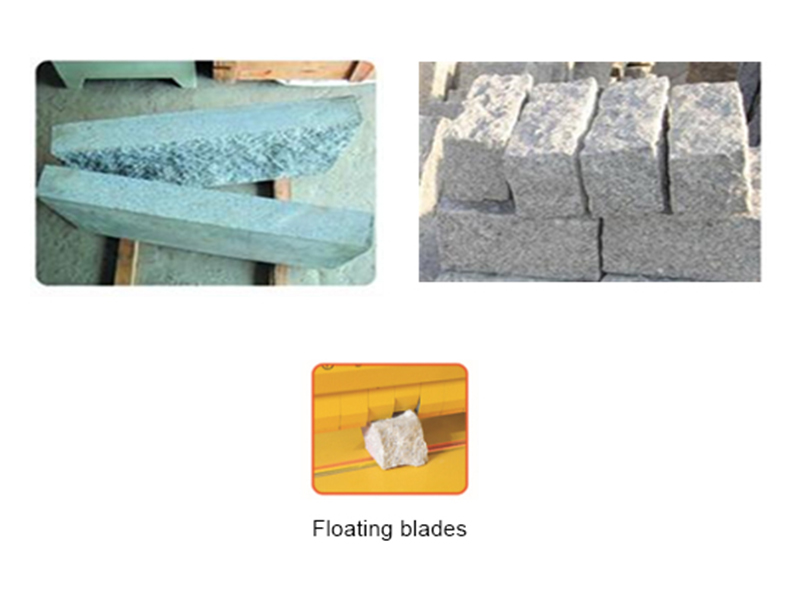

This machine can work with straight and segmented blades as shown on right side.

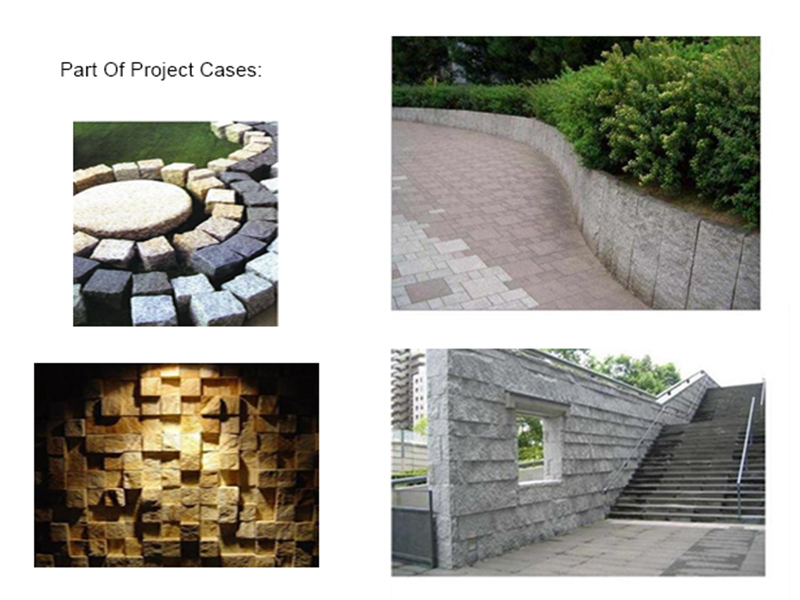

This machine can easily split natural face stone into small cubes or cobbles which are widely used for streets, parks, plaza, villas, luxurious houses,hotel decoration,etc. The blades are changable. Sensor's optional to ensure the safety.
| Diamention | 200x100x220CM |
| Weight | 1.7tons |
| General Power(KW) | 11Kw |
| Voltage/Frequency | 380V/50HZ |
| Flow Rate | 47L |
| Hydraulic Pressure | 80tons |
| Maximum Processing Height | 30cm |
| Maximum Processing Length | 40cm |
| Output/Hour | 18M² |
| Hydraulic Oil Grade | 46# |
| Oil Tank Capacity | 350L/290KG |
| Packing (DIM & GW) | 210x110x230cm/1.9t |
Product Display
