KSD 95Y Stone Splitting Machine

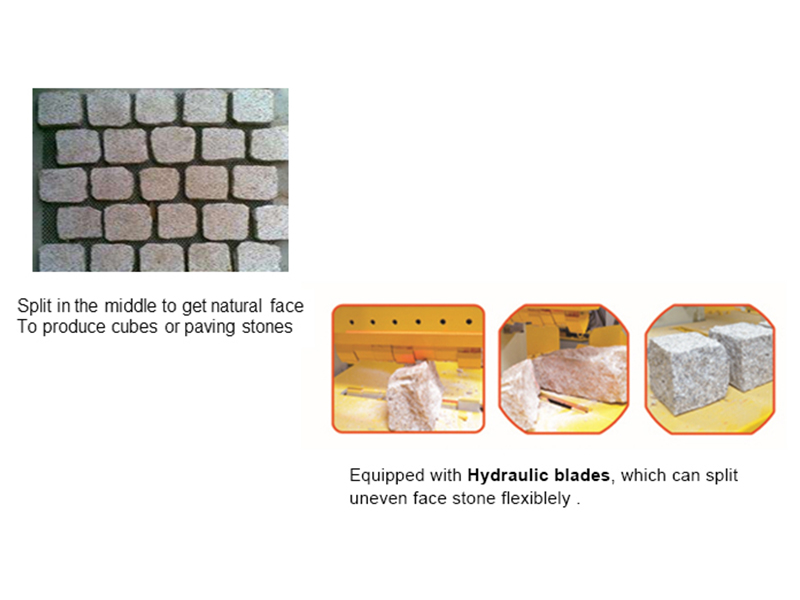

KSD-95Y has hydraulic segments, which can go up and down flexiblely, using the flexible segments can split more uneven face stone.
KSD-95Y machine can easily split natural face stone into small cubes or cobbles which are widely used for streets, parks, plaza, villas, luxurious houses,hotel decoration,etc. Sensor's optional to ensure the safety.
| Diamention | 200x100x220CM |
| Weight | 1.8tons |
| General Power(KW) | 11Kw |
| Voltage/Frequency | 380V/50HZ |
| Flow Rate | 47L |
| Hydraulic Pressure | 80tons |
| Maximum Processing Height | 30cm |
| Maximum Processing Length | 40cm |
| Output/Hour | 18M² |
| Hydraulic Oil Grade | 46# |
| Oil Tank Capacity | 350L/290KG |
| Packing (DIM & GW) | 210x110x230cm/2t |
Product Display
