KSD-96H Stone Splitting Machine
KSD-96H is bigger, and has higher pressure than KSD-95H, and improved the floating blades from segment blade, to process stone with big density and hardness.

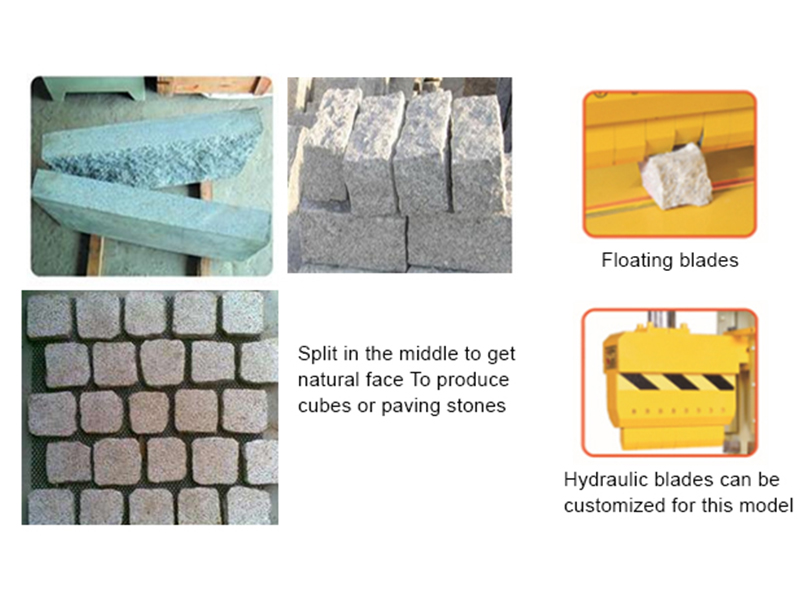

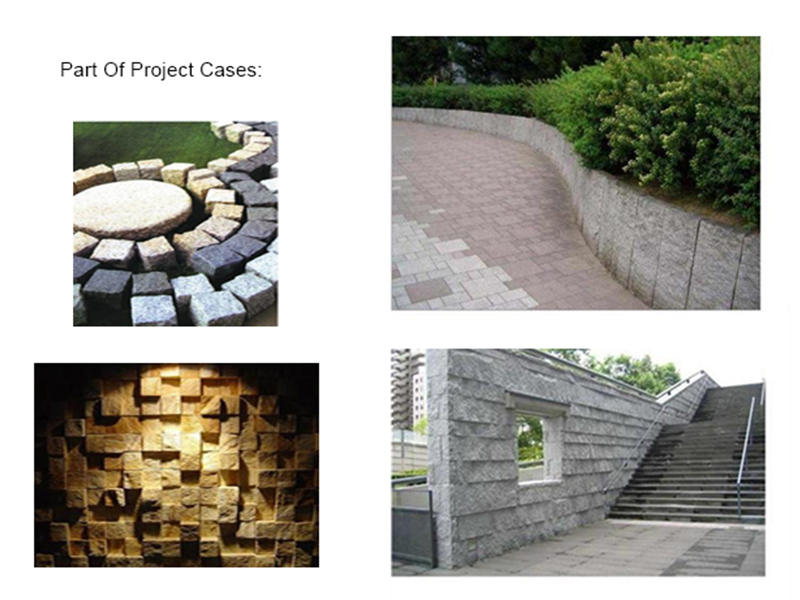

KSD-96H machine can easily split natural face stone into small cubes or cobbles which are widely used for streets, parks, plaza, villas, luxurious houses,hotel decoration,etc. The blades are changable. Sensor's optional to ensure the safety.
| Diamention | 215x100x215cm |
| Weight | 2.2tons |
| General Power(KW) | 11Kw |
| Voltage/Frequency | 380V/50HZ |
| Flow Rate | 47L |
| Hydraulic Pressure | 120tons |
| Blade Feeding Speed | 9cm/second |
| Maximum Working Height | 30cm |
| Maximum Working Length | 50cm |
| Output/Hour | 18M² |
| Hydraulic Oil Grade | 46# |
| Oil Tank Capacity | 350L/290KG |
| Packing (DIM & GW) | 225x110x225cm/2.2t |
Description: KSD-96H is bigger, and has higher pressure than KSD-95H, and improved the floating blades from segment blade, to process stone with big density and hardness.
Function Description: KSD-96H machine can easily split natural face stone into small cubes or cobbles which are widely used for streets, parks, plaza, villas, luxurious houses,hotel decoration,etc. The blades are changable. Sensor's optional to ensure the safety.
