Curbstone Slicing Machine DF1200-12
Curbstone Slicing Machine DF1200-12（without roller）
It use a main spindle and a vice spindle to seal together which can ensure the machine stable while cutting hard granite.
1. no foundation needed, easy installation, easy for shipment.
2. it adopts enlarged trolley, 2 pcs of block can be cut at one time.
3. it use a main spindle and a vice spindle to seal together which can ensure the machine stable while cutting hard granite.
4. it uses simple program of movement on the controlling box, easy for setting and handling.
5. Hydraulic system is adopted on the machine
Note：If take single DF1200-12, roller on worktable is no need.
Dimension6000×2300×2300mmDiameter of blade1200mmNumber of blades12pcsMax. Cutting size3000×1600×450mmWorktable size2500×180
|
Dimension |
6000×2300×2300mm |
|
Diameter
of blade |
1200mm |
|
Number
of blades |
12pcs |
|
Max.
Cutting size |
3000×1600×450mm |
|
Worktable
size |
2500×1800mm |
|
Weight |
9t |
|
Max.cutting
depth |
450mm |
|
Main
motor power |
55kw |
|
Max.vertical
stroke |
600mm |
|
covering
space |
6*3m |
|
output:
cut with medium hard granite, it produce 2.0m³/h, for hard granite like india
red, it can produce 1.5m³/h |
|
0mmWeight9tMax.cutting depth450mmMain motor power55kwMax.vertical stroke600mmcovering space6*3moutput: cut with medium hard granite, it produce 2.0m³/h, for hard granite like india red, it can produce 1.5m³/h

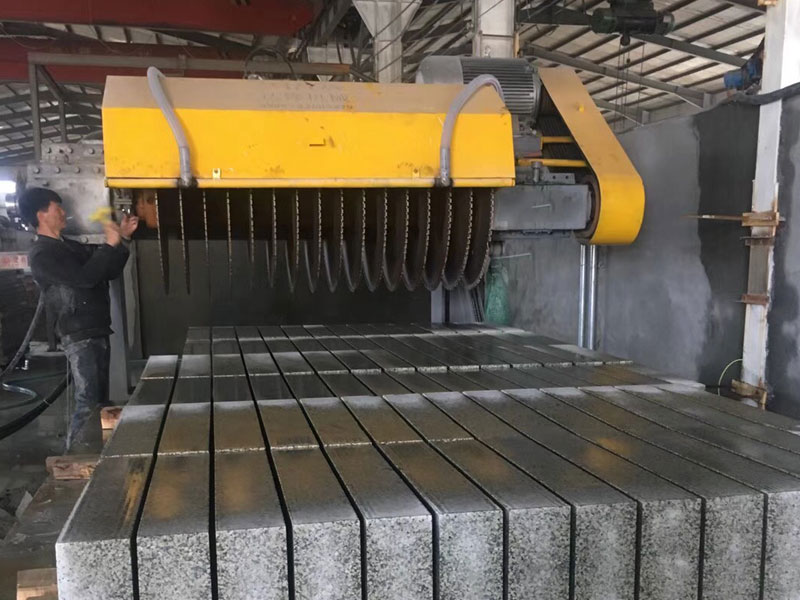

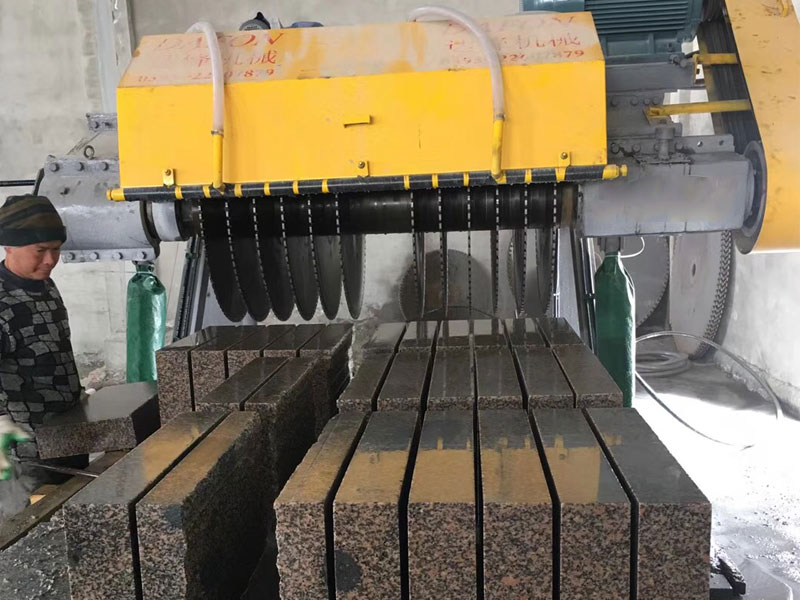

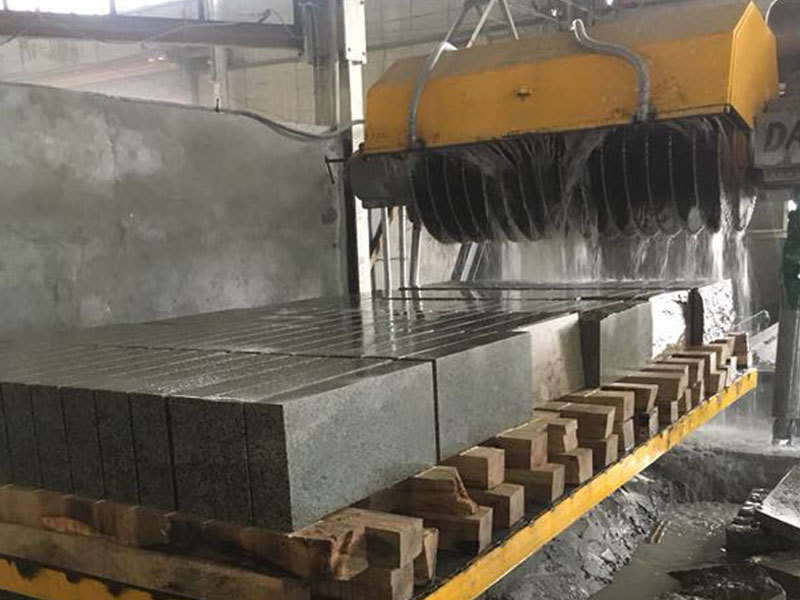

Product Display
