MZX2-52
1. This model is 3 systems, single carriage machine. The needle bed length is 52inch (132cm). One additional system is added based on the double system, the three system can work together and separate, enhancing the productivity greatly
2. Equiped with the dynamic stitch function, enable the machine to knit much wider range of patterns. It can knit different density at the same line which break the old knitting method of same line can only have same density. The pattern knitted by dynamic stitch function can have more 3D effect
3. This model use high efficiency servo, it can reach the speed of 1.4m/s, which is also the fastest speed in flat knitting machine industry
4. It equips with electronic probe, enable the machine to detect the needle collision precisely, and reduce the false alarm as well as the needle collision greatly.
| Model | MZX2-52 |
| Knitting Speed | 1.2m/s |
| Knitting Width | 52 inch (132cm) |
| Machine Dimension(LWH) | 3000*1000*1400mm |
| Packing Dimension(LWH) | 3100*1100*1800mm |
| N.W. | 1150 |
| Gross Weight(kg) | 1250 |

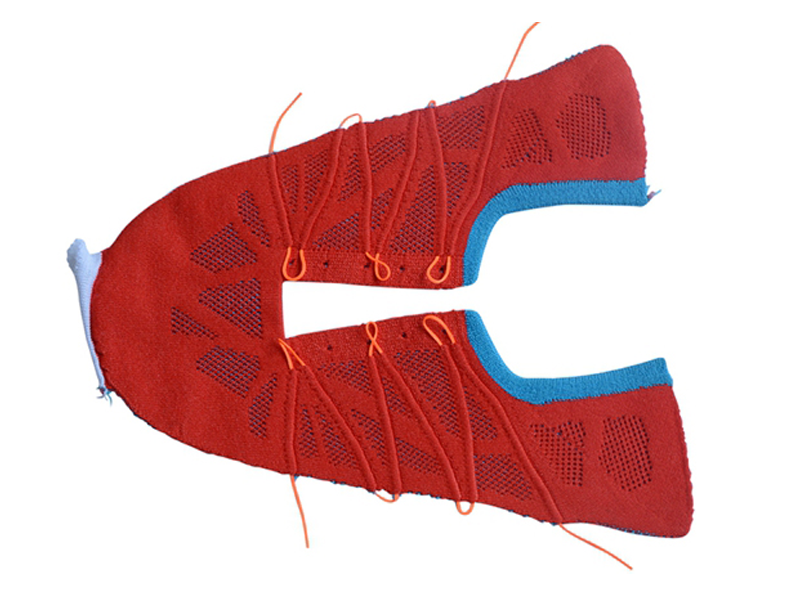

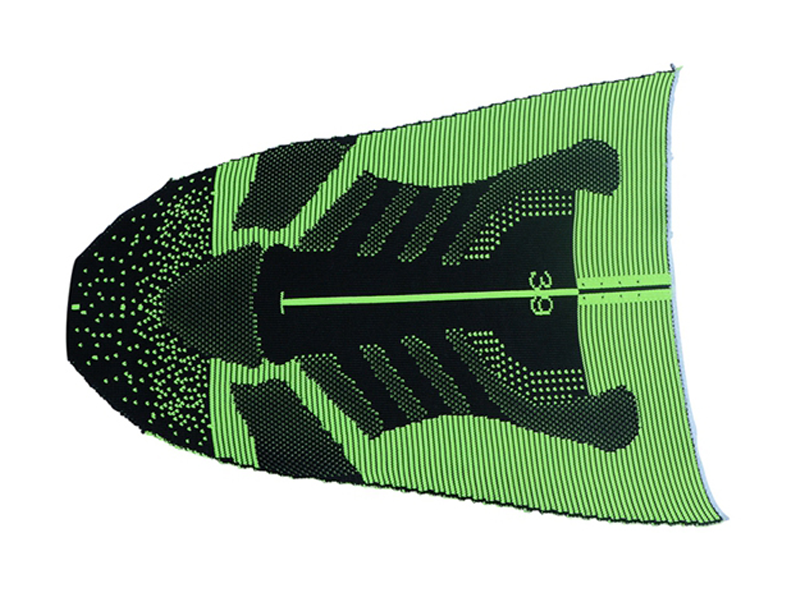

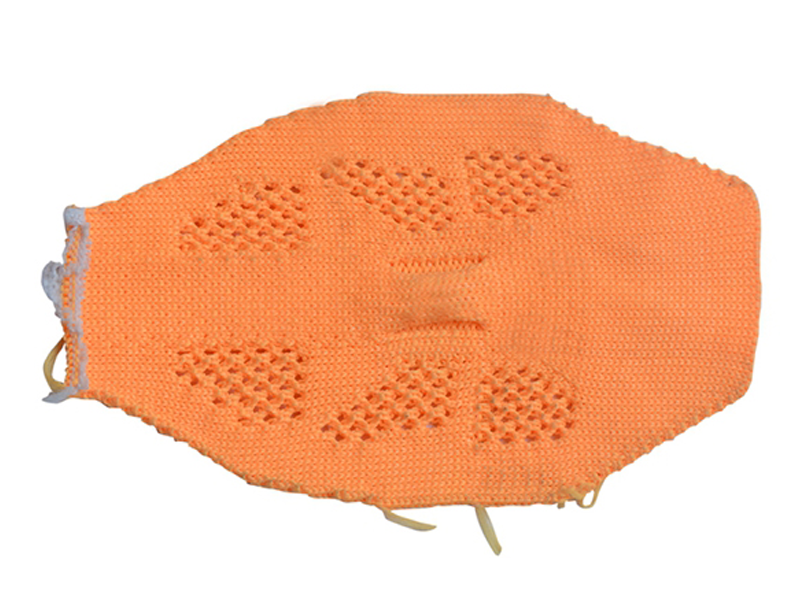

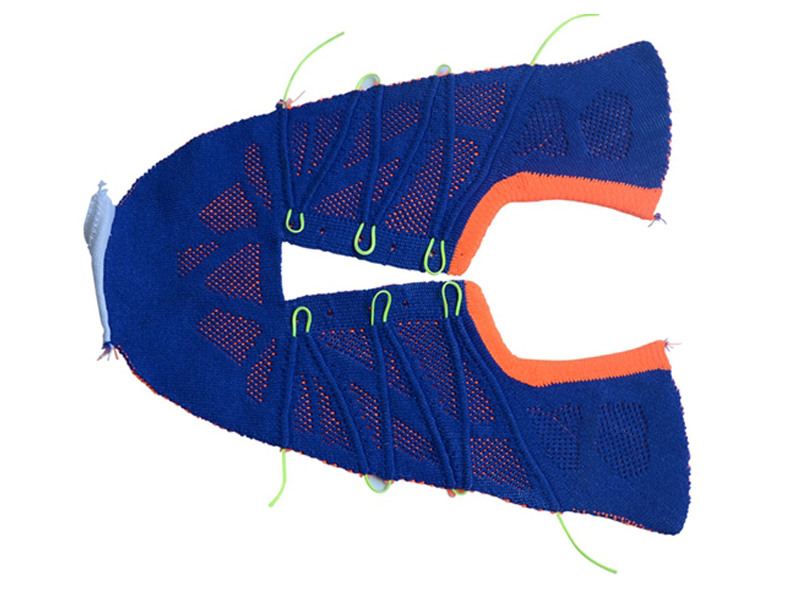

Product Display
