DL 350

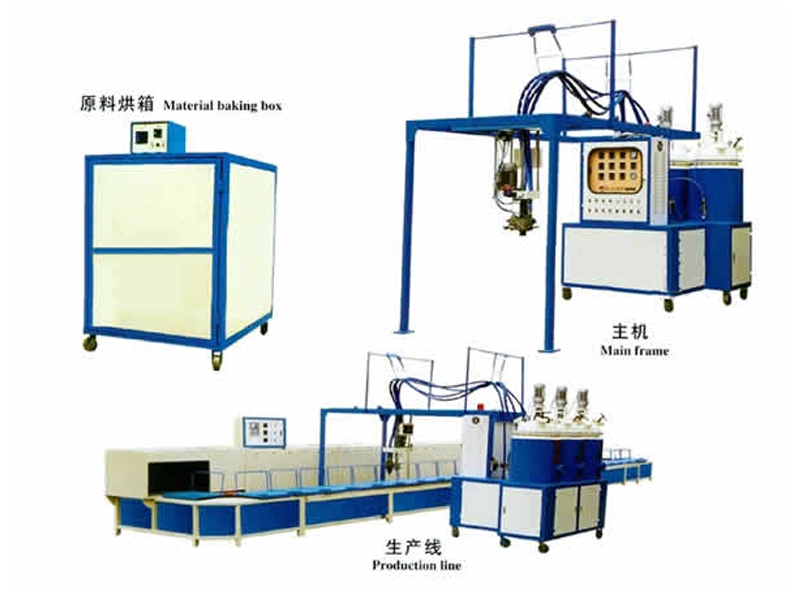

DL-350 - High Pressure Polyurethane (PU) Pouring Machine Stations: 60, Clamping Force: NIL, Total Power: 61.35KW, Conveyor: 41.20KW, Oven(Heater): 8KW, Main Machine: 12.15KW, Material Pump(3pcs): 2.25KW, Oil Tank(3pcs) and Heater: 6.75KW, Material Tank(3pcs): 1.65KW, Pouring Head: 1.5KW , Mould Opening / Closing: By Manual, Heating Oil Capacity:120L , Production - Shoes & Slippers: 5000Pairs/16Hours , Sole: 6000-7000Pairs/16Hours, Dimensions of Machine(LxWxH): Conveyor:19M x 2M x 1.45M, Main machine: 2.20M x 1.60M x 2.80M, Weight of Machine: 6.00Ton/Set, Mixing Screw Speed: Up to12000RPM, Pouring Height Up-Down Movement: Yes, Conveyor-Control: With Pouring Head, Ratio Setting: By Touch Button On Control Panel
